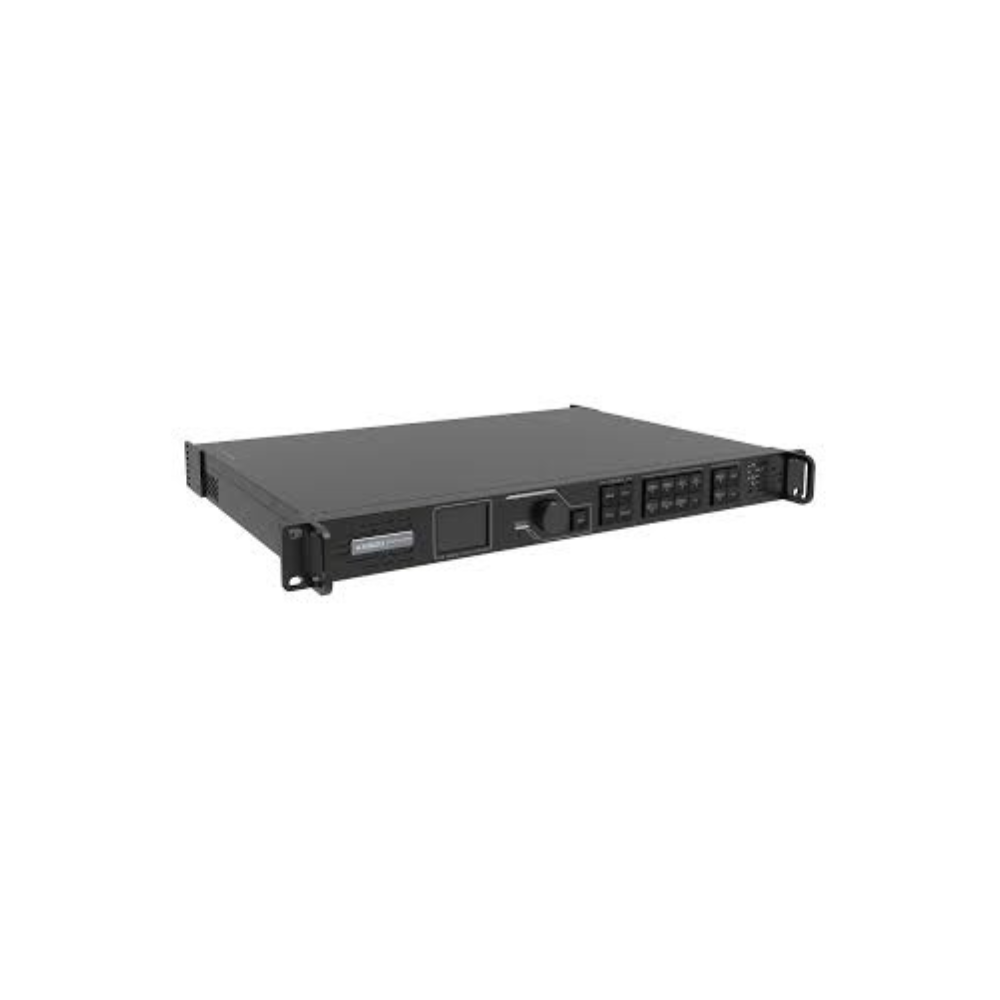

DSP 400pro Novastar Video Processor

Name: DSP 400pro Novastar Video Processor
Brand: J D DISPLAY TECHNOLOGIES PRIVATE LIMITED
Price: 60000 INR
Availability: InStock

Price 60000 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

DSP 400pro Novastar Video Processor Specification

Product Type
Video Processor

Finish
Matte

Humidity
10% ~ 85% RH, non-condensing

Service Period
Continuous Operation

Color
Black

Brand Name
Novastar

Size
Standard 1U Rackmount

Installation Guideline
Rack Mount or Desktop Installation

Usage
Video Signal Processing for LED Displays

Equipment Type
Professional Video Processor

IP Rating
IP20 (Indoor Use)

Application
LED Wall Display, Live Events, Broadcast, Conference

Design
Industrial

Output Voltage
HDMI/DVI Output (Video Level Signal)

Frequency
50/60 Hz

Weight
3.2 kg

Mounting Type
Rackmount/Desktop

Input Voltage
AC 100-240V

Surface Treatment
Powder-coated

Process
Multi-channel Video Input Switching

Material
Metal Enclosure

Dimension (L*W*H)
482 mm 240 mm 44 mm

RAM
Embedded system memory

Temperature
-20C to +60C

Part
Video Processor Unit

Tolerance
Signal Switching Delay 50 ms

CPU Support
Built-in high-performance DSP processor

Thickness
Chassis: 1.2 mm

Technique
Digital Signal Processing

Supply Voltage
AC 100-240V, 50/60Hz

Processing
Real-time Scalable Video Processing

Standard
CE, FCC Certified

Model No
DSP 400pro

Scaling Function
Support for Zoom in/out and Pan adjustment

Firmware Upgrade
USB/Ethernet Supported

Supported Video Formats
RGB, YPbPr, CVBS, S-Video, SDI, HD-SDI, HDMI, DVI

Signal Processing Bit Depth
10-bit Processing Engine

Seamless Switching
Yes

Control Method
Front Panel, RS232, USB, Ethernet

Max Input Resolution
1920 x 1200 @60Hz

Cooling Method
Intelligent Fan Cooling

Video Input Ports
2 x HDMI, 1 x DVI, 1 x VGA, 1 x SDI

Max Output Resolution
1920 x 1200 @60Hz

Preset Storage
Up to 8 scene presets

Power Consumption
35W (Max)

Audio Handling
Embedded Audio Supported

Video Output Ports
2 x DVI, 1 x HDMI, 1 x SDI

About DSP 400pro Novastar Video Processor

The Novastar DSP400 Pro is an all-in-one LED video processor and controller, delivering 2.6 million pixels of capacity with 4 Gigabit Ethernet ports and high-resolution input support (4K$times$2K@60Hz). Designed for versatility, it supports 6 layers, seamless scaling, and low latency for, making it ideal for, video walls, advertising screens, and event staging.

Advanced Video Connectivity

The DSP 400pro offers flexible video connectivity with multiple inputs, including 2 HDMI, 1 DVI, 1 VGA, and 1 SDI port, paired with outputs like 2 DVI, 1 HDMI, and 1 SDI. This range supports diverse video sources and output needs, ensuring compatibility with a wide array of professional equipment, making it suitable for dynamic signal routing in LED wall displays and live production.

Seamless Signal Switching and Processing

The video processor excels in rapid, seamless switching between inputs with a signal delay tolerance of less than 50 ms. Real-time scalable video processing, zoom, pan, and preset scene functionality offer event operators maximum flexibility. The built-in 10-bit processing engine ensures high-quality image rendering for professional displays.

Effortless Control and Reliable Cooling

Control the DSP 400pro through the front panel, RS232, USB, or Ethernet, adapting to various workflow and installation preferences. Intelligently managed fan cooling and power-efficient design (35W max consumption) guarantee stable performance during continuous operation, even in challenging temperature and humidity conditions.

FAQ's of DSP 400pro Novastar Video Processor:

Q: How do I control and configure the DSP 400pro video processor?

A: You can control and configure the DSP 400pro using its front panel buttons, RS232, USB, or Ethernet interfaces. This allows for flexible management according to your operational workflow and installation environment, ensuring ease of use in both permanent installs and live events.

Q: What kind of video sources and formats does the DSP 400pro support?

A: The processor handles various input types, including HDMI, DVI, VGA, and SDI, and is compatible with video formats such as RGB, YPbPr, CVBS, S-Video, SDI, HD-SDI, HDMI, and DVI. This wide compatibility ensures integration with most professional video sources and legacy equipment.

Q: When should I use the DSP 400pro in my installation or event?

A: The DSP 400pro is best used in professional settings that require dynamic signal management, such as LED wall displays in live events, broadcast studios, conferences, and installations where seamless input switching and high-quality output are required.

Q: Where can I install the DSP 400pro, and how is it mounted?

A: The unit features a 1U rackmount metal enclosure (dimensions: 482 x 240 x 44 mm), making it suitable for standard 19-inch racks or desktop setups. It can be installed in control rooms, event venues, or any indoor environment with an AC 100-240V power source.

Q: What is the process for updating firmware on the DSP 400pro?

A: Firmware upgrades can be performed easily via USB or Ethernet, ensuring your processor remains up-to-date with the latest features and performance improvements from Novastar.

Q: How does the DSP 400pro benefit live event and conference operators?

A: The processor delivers seamless, low-latency signal switching (less than 50 ms delay), supports real-time scaling, and stores up to eight scene presets for fast, efficient transitions-factors vital for smooth event execution and professional visual presentations.

Q: What measures are in place to ensure reliable performance during operation?

A: The DSP 400pro features an intelligent fan cooling system, robust metal chassis, powder-coated finish, and operates within a temperature range of -20C to +60C and humidity of 10%-85% RH (non-condensing), supporting continuous operation under diverse conditions.
