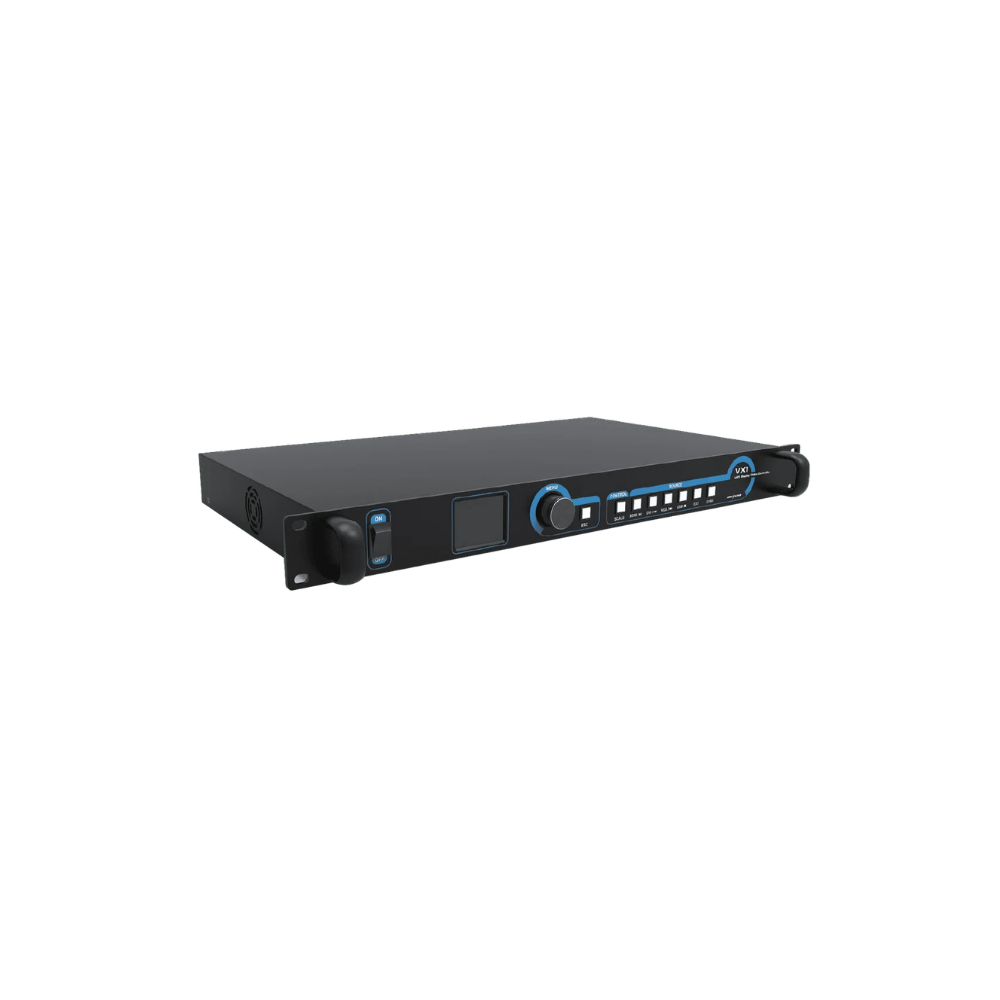

Novastar VX1 Led Video Processor

Name: Novastar VX1 Led Video Processor
Brand: J D DISPLAY TECHNOLOGIES PRIVATE LIMITED
Price: 13500 INR
Availability: InStock

Price 13500 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit Piece

Novastar VX1 Led Video Processor Specification

Humidity %
10%~90% RH, non-condensing

Operating Temperature
-20C to +60C

Housing
Metal Enclosure

Shape
Rectangular

Power Supply
Internal

Control Type
Front Panel/Remote

Product Type
LED Video Processor

Material
Metal

Power Factor
0.95

Input Voltage
AC 100V~240V, 50/60Hz

Working Temperature
-20C to +60C

Application
LED Display Control System

Size
Standard 1U Rack Mount

Dimension (L*W*H)
482mm 211mm 55mm

Weight
2.6kg

Color
Black

Max Resolution
19201200@60Hz

USB Control
Supported (U-Disk configuration and firmware upgrade)

Audio Input/Output
Stereo Audio Input and Output Supported

Input Interfaces
HDMI, DVI, VGA, CVBS, USB

Preset Saving
Multiple scene saving and recalling

Output Interfaces
Ethernet Ports x 2 (MAX 1.3 million pixels total)

Video Scaling
Supports scaling, positioning, and cropping

Seamless Switching
Supports fade in/out and fast switching between input sources

About Novastar VX1 Led Video Processor

The NovaStar VX1 LED Video Processor is a professional all-in-one solution that combines video processing and sending card functions in a single device. It is designed to deliver smooth signal transmission, seamless switching, and high-quality display output for LED video walls. With multiple input options like HDMI, DVI, and VGA, the VX1 allows flexible connectivity with laptops, cameras, and media sources. It supports real-time scaling, cropping, and picture-in-picture features for enhanced display control. Ideal for events, advertising screens, and indoor/outdoor LED setups, the VX1 ensures stable performance and easy operation for professional display management.

Versatile Connectivity for Professional Displays

Connect multiple video devices with HDMI, DVI, VGA, CVBS, and USB inputs. The Novastar VX1 ensures seamless compatibility with a wide array of video sources, making it highly adaptable for different LED display applications. Dual Ethernet output ports maximize pixel coverage, supporting high-resolution displays for events, venues, or digital signage.

Advanced Video Processing and Scaling

Achieve precise video presentation using built-in scaling, positioning, and cropping features. This processor supports easy transitions between sources with seamless switching, including fade in/out and fast switching capabilities. Scene presets save time and enhance efficiency during setup and operation.

User-Friendly Operation and Robust Design

The VX1 provides flexible control with both front panel access and USB-based remote configuration. Firmware upgrades and parameter setups are simple via USB. Encased in durable metal, measuring just 1U for easy rack mounting, it withstands challenging environments with a broad temperature and humidity range.

FAQ's of Novastar VX1 Led Video Processor:

Q: How do I connect various video sources to the Novastar VX1 LED Video Processor?

A: You can connect devices using HDMI, DVI, VGA, CVBS, or USB inputs. Simply select the appropriate input port on the rear panel, and switch between sources via the front control panel or USB remote control.

Q: What is the maximum resolution and pixel capacity the VX1 can handle?

A: The VX1 supports a maximum video resolution of 1920x1200 at 60Hz. Its two Ethernet output ports can collectively manage up to 1.3 million pixels, making it suitable for large-scale LED displays.

Q: When should I use the video scaling, positioning, and cropping features?

A: Utilize these features to adjust video content to suit your LED display's unique size and layout. This is particularly helpful for events requiring precise image alignment or when managing multiple aspect ratios.

Q: Where is the Novastar VX1 typically installed in a professional setup?

A: The VX1 is designed for standard 1U rack mounting, making it ideal for control rooms, event venues, or broadcast environments where space and organization are important.

Q: What is the process for updating firmware or configuring settings?

A: Firmware updates and configurations are done via the USB interface. Simply connect a U-Disk with the necessary files to the VX1's USB port and follow on-screen instructions via the front panel.

Q: How does seamless switching between sources benefit users?

A: Seamless switching, including fade in/out and fast transitions, ensures a smooth and professional visual experience. This is especially valuable in live events where abrupt transitions can disrupt presentations.

Q: What are the primary benefits of using the VX1 for LED display control?

A: The VX1 offers flexibility, robust performance, and user-friendly operation. With wide input compatibility, precise scaling, reliable metal construction, and convenient scene presets, it is an excellent choice for a range of display control applications.
