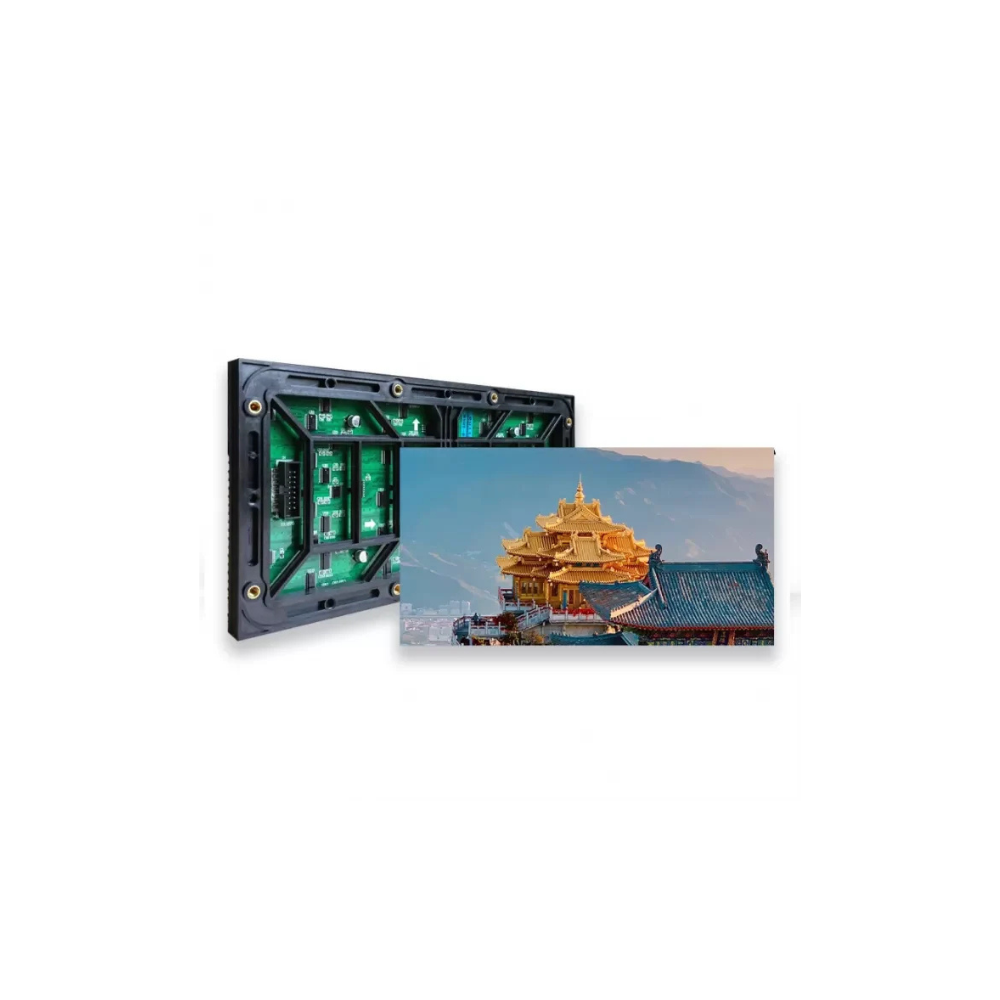

P1.8 Led Module

Name: P1.8 Led Module
Brand: J D DISPLAY TECHNOLOGIES PRIVATE LIMITED
Price: 2200 INR
Availability: InStock

Price 2200 INR/ Piece

Get a Price/Quote

MOQ : 10 Modules Pieces

P1.8 Led Module Specification

Operating Temperature
-10C to +50C

Response Time
<0.02ms

Wireless Distance
Up to 100m (with Wireless Control)

Housing
Plastic + Metal Back

Shape
Rectangle

Light Color
RGB Full Color

Beam
160(H)/140(V)

Power Supply
5V/40A

Control Type
Synchronous / Asynchronous

Current Rating
4.8A

Efficiency (%)
>85%

Life Span
100,000 Hours

Humidity %
10% - 90% RH

Product Type
Indoor LED Display Module

Material
SMD LED, PCB, Plastic

Base
SMD1515

Power Factor
0.95

Input Voltage
DC 5V

Working Temperature
-20C to +60C

Lamp Power
8W

Application
Indoor Advertising, Conference, Control Room, TV Studio

Size
1.8mm Pixel Pitch

Dimension (L*W*H)
320mm x 160mm x 18mm

Weight
0.32 kg/module

Color
Full Color RGB

LED Type
SMD 3-in-1

Color Temperature
6500K 500K

IP Rating
IP31

Viewing Distance
>1.8m

Connector Type
HUB75

Cabinet Compatible Size
640mm x 480mm or customizable

Module Maintenance
Front & Rear Service

Pixel Configuration
1R1G1B

Driving Method
1/48 Scan

Brightness
800 cd/m2

Refresh Rate
3840 Hz

Gray Scale
14-16 Bit

Average Power Consumption
12W/module

Max Power Consumption
30W/module

Module Resolution
172 x 96 pixels

About P1.8 Led Module

The P1.8 LED Module is a high-resolution indoor display solution designed to deliver sharp image quality and smooth visual performance. With a pixel pitch of 1.8 mm, it offers excellent clarity for medium to close viewing distances, making it ideal for professional indoor applications.

Ultra-Fine Visual Performance

Experience vivid images with a 1.8mm pixel pitch and 172 x 96 module resolution, providing sharp detail ideal for indoor displays that demand close-up viewing. The P1.8 LED Module's 14-16 bit grayscale and 3840 Hz refresh rate ensure smooth, true-to-life visuals for high-impact signage, presentations, and broadcast environments.

Customizable and Flexible Installation

Adapt to varied project requirements with cabinet-compatible sizes of 640mm x 480mm, or request custom dimensions. The module supports both front and rear maintenance options, making it easy to install and service within tight spaces or unique installation layouts.

Reliable, Energy-Efficient Operation

Designed for resilience, the P1.8 LED Module features a robust build of SMD LED technology, plastic, and metal backing. With efficient power consumption (max 30W/module), wide working temperature range, and long life span up to 100,000 hours, it's optimized for consistent performance in demanding indoor environments.

FAQ's of P1.8 Led Module:

Q: How is the P1.8 LED Module maintained and serviced?

A: The P1.8 LED Module offers both front and rear service options, allowing easy access for quick maintenance or repairs. This flexible approach is suitable for installations with different space requirements, ensuring minimal downtime.

Q: What applications are most suited for the P1.8 LED Module?

A: This module excels in indoor environments such as advertising displays, conference halls, control rooms, and TV studios where high-resolution, vibrant, and reliable visuals are essential.

Q: When should I consider using the P1.8 LED Module over other types?

A: Choose the P1.8 LED Module when you require high-resolution, close-viewing LED display performance with fine pixel pitch for detailed content, particularly within indoor settings.

Q: Where can the P1.8 LED Module be installed?

A: The module is designed for indoor installation and can be fitted into cabinet sizes of 640mm x 480mm or customized for specific projects. Its versatile mounting options make it suitable for walls, displays, or embedded screen systems in professional environments.

Q: What is the process for customizing the module size or installation?

A: Customization is straightforward: share your required dimension and configuration with the supplier or distributor. Expert teams will tailor the cabinet size or module layout to fit your project needs and offer installation support as needed.

Q: How does the wireless control feature benefit users?

A: With built-in capability for wireless control up to 100m, the module allows convenient configuration and content updates remotely, streamlining digital signage management and reducing physical access requirements.

Q: What advantages does the SMD1515 LED and 1R1G1B configuration provide?

A: The use of SMD1515 LEDs and a true 1-red, 1-green, 1-blue (1R1G1B) pixel setup delivers high color consistency, improved grayscale, better brightness stability, and accurate full-color reproduction, enhancing the overall visual experience.
