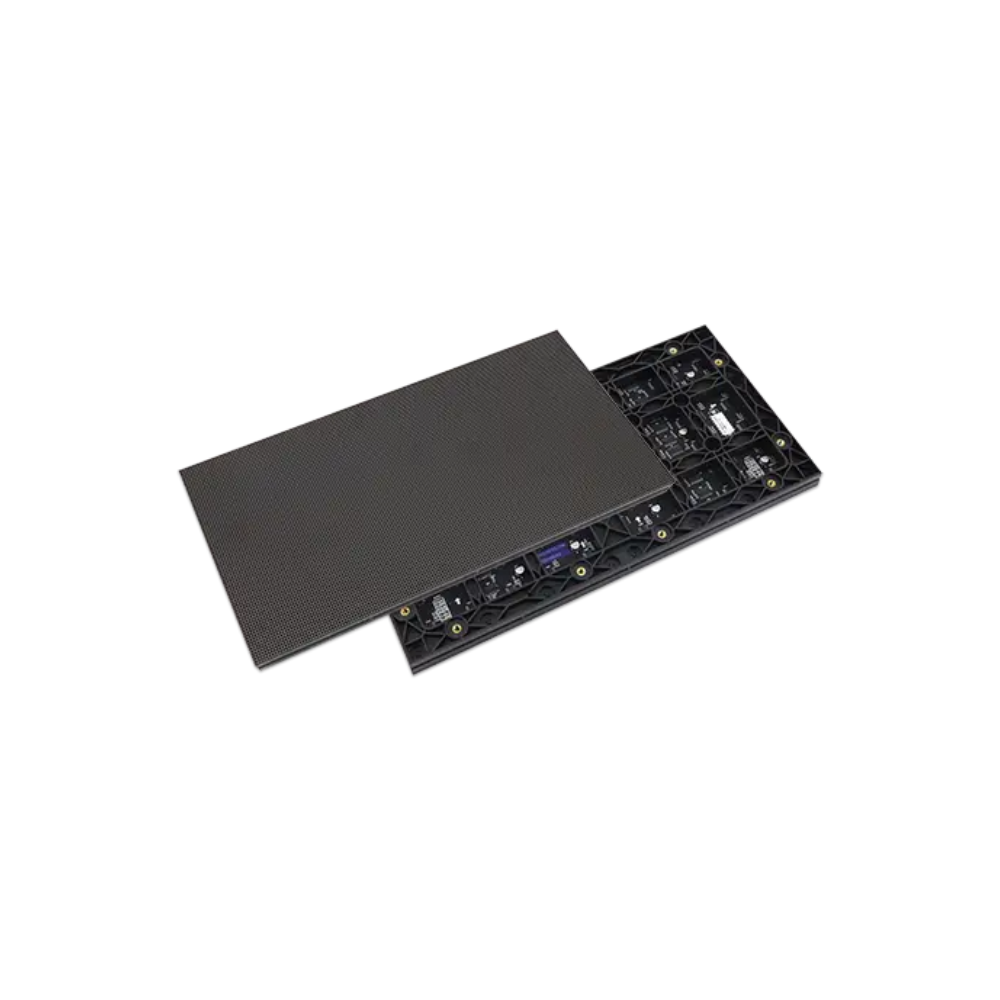

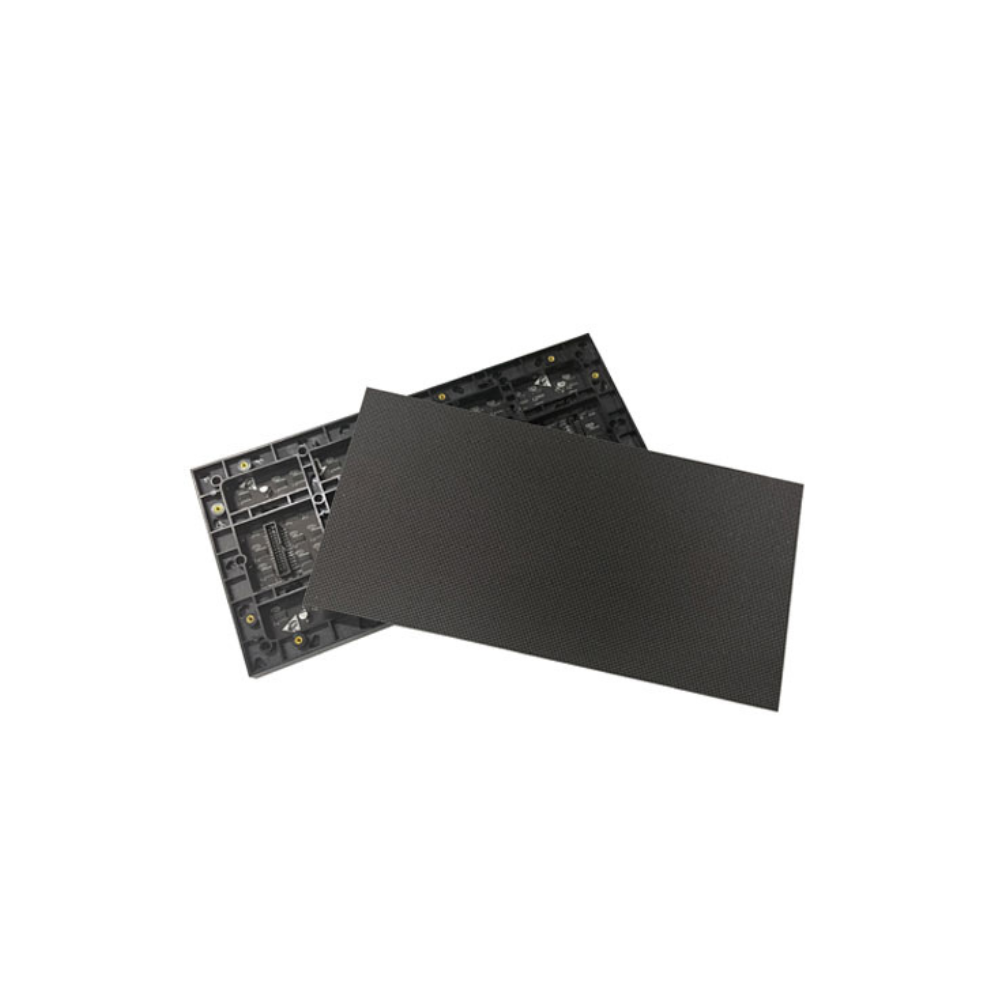

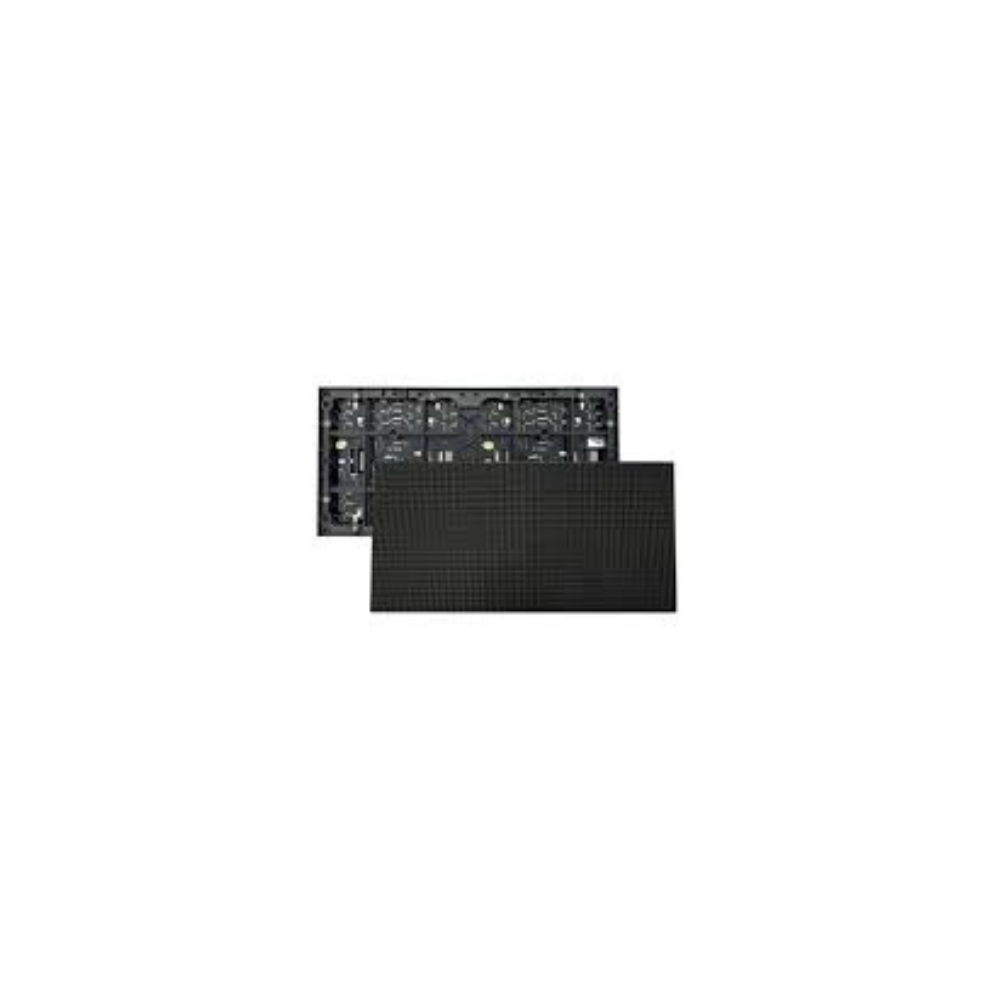

P1.25 Led Module

Name: P1.25 Led Module
Brand: J D DISPLAY TECHNOLOGIES PRIVATE LIMITED
Price: 4600 INR
Availability: InStock

Price 4600 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece Piece

P1.25 Led Module Specification

Life Span
100,000 hours

Wireless Distance
Optional, up to 200m with wireless card

Operating Temperature
-20C to +50C

Housing
ABS / Aluminum Cabinet Option

Control Type
Synchronous/Asynchronous Control

Response Time
1ms

Light Color
Full Color RGB

Efficiency (%)
>85%

Humidity %
10% ~ 90% RH

Beam
Horizontal 140, Vertical 140

Power Supply
DC 5V, 40A

Shape
Square

Current Rating
4.8A max per module

Product Type
LED Display Module

Material
ABS Plastic, Die-Cast Aluminum

Base
SMD Surface Mount

Power Factor
>0.9

Input Voltage
DC 5V

Working Temperature
-20C to +50C

Lamp Power
Max 18W

Application
Advertising, Indoor Rental, Control Rooms, Broadcasting

Size
160mm x 160mm

Dimension (L*W*H)
160mm x 160mm x 11.5mm

Weight
0.25 kg

Color
Black

LED Type
SMD1010

Color Temperature
6500K

IP Rating
IP43

Driving Method
Constant Current

Gray Scale
14 bit

Contrast Ratio
9000:1

Scan Mode
1/32 scan

Refresh Rate
1920 ~ 3840 Hz

Brightness
600 cd/m2

Pixel Pitch
1.25mm

Input Interface
HUB75

Viewing Distance
1.5m

Module Resolution
128 x 128 pixels

Storage Temperature
-40C to +80C

Maintenance
Front and Rear Serviceable

Cabinet Compatibility
320mm x 320mm, 640mm x 480mm etc.

About P1.25 Led Module

We are offering high-quality P1.25 Indoor LED Display Module, designed for ultra-high resolution applications where sharp image clarity and seamless display are required. With a pixel pitch of 1.25mm, this LED module delivers crystal-clear visuals, making it perfect for close viewing environments.

Crystal-Clear Visual Performance

Experience superior picture clarity with the P1.25 LED Module, which delivers full-color RGB imagery at 128 x 128 pixel resolution. The fine 1.25mm pixel pitch ensures that visuals are sharp and detailed, while a high contrast ratio of 9000:1 and 14-bit grayscale contribute to deep, lifelike colors even in complex image sequences.

Versatile and Robust Design for Multiple Applications

Designed for flexibility, the P1.25 LED Module supports various cabinet sizes and features both front and rear service access, ensuring easy installation and maintenance. Its robust ABS plastic and die-cast aluminum construction, combined with IP43 protection, make it suitable for indoor use in demanding environments like control rooms, rental spaces, and broadcasting studios.

Efficient Operation and Long-Term Reliability

Enjoy cost-effective performance thanks to the module's energy efficiency (>85%), low 0.25 kg weight, and a power factor greater than 0.9. The P1.25 supports both synchronous and asynchronous control with optional wireless connectivity up to 200 meters, offering flexibility and reliability that meets professional display requirements for years.

FAQ's of P1.25 Led Module:

Q: How is the P1.25 LED Module maintained and serviced?

A: This module is designed for both front and rear serviceability, allowing easy access for installation and maintenance in different setups. Maintenance can be performed quickly without the need for dismantling the entire display, which saves time and reduces costs.

Q: What environments and applications is this LED module suitable for?

A: With its high brightness, 14-bit grayscale, durable design, and IP43 rating, the P1.25 LED Module is ideal for indoor advertising, control rooms, rental displays, broadcasting, and similar professional use cases in India and other regions.

Q: When should I consider using a 1.25mm pixel pitch LED module?

A: A 1.25mm pixel pitch is recommended when you require ultra-high resolution and viewers will be close to the screen, generally within 1.5 meters. This makes it perfect for command centers, retail displays, and studio backdrops where image clarity is paramount.

Q: Where can this LED module be installed?

A: The module is compatible with various cabinet types (320mm x 320mm, 640mm x 480mm, etc.), ensuring adaptability for different installation environments such as showrooms, conference halls, and control rooms.

Q: What is the process to integrate the P1.25 LED Module into an existing system?

A: Integration involves mounting the module within a compatible cabinet, connecting it via the HUB75 interface, and configuring control software for either synchronous or asynchronous operation. Options also exist for wireless control up to 200 meters with the addition of a wireless card.

Q: How does the module handle power and efficiency requirements?

A: It operates on DC 5V power with a maximum lamp power of 18W and a power factor above 0.9, ensuring high efficiency. The constant current driving method supports stable performance even during prolonged usage.

Q: What are the benefits of using the P1.25 LED Module over traditional display technologies?

A: The P1.25 LED Module offers finer image quality, energy efficiency, a long operational lifespan (up to 100,000 hours), rapid response time of 1ms, and flexible installation and service options, making it a superior choice for modern digital displays.
