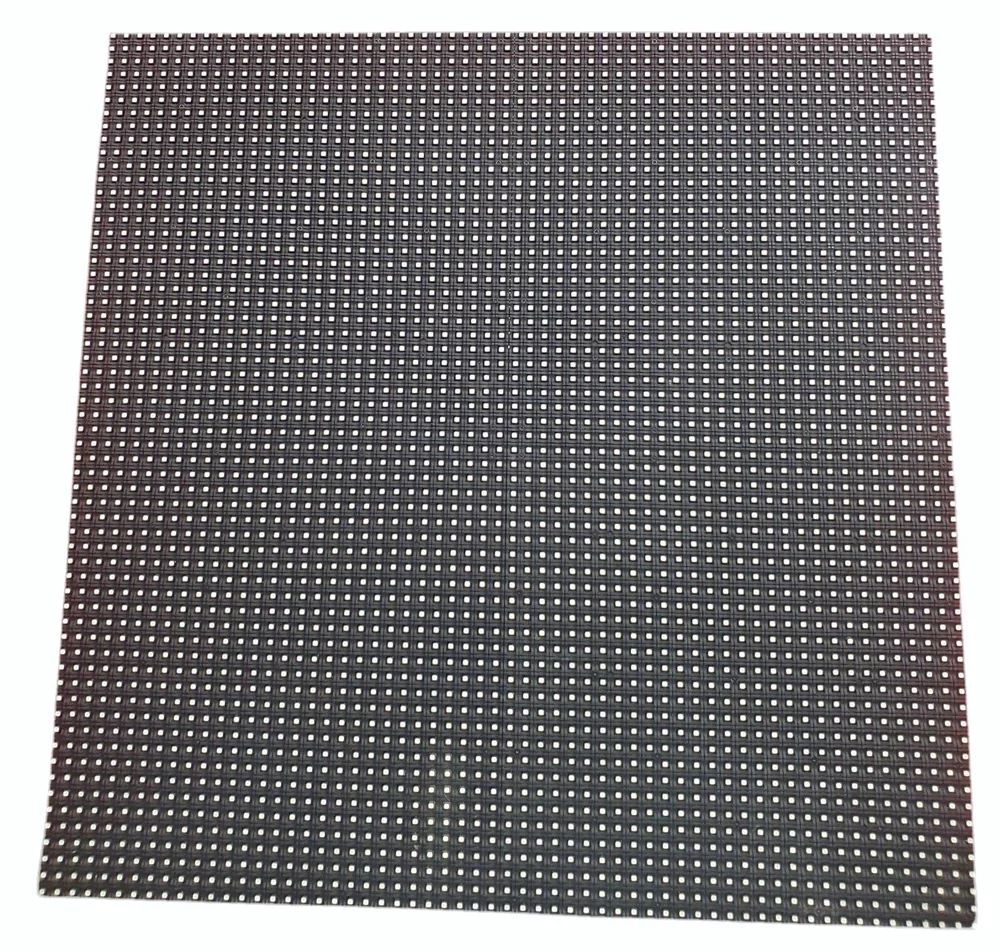

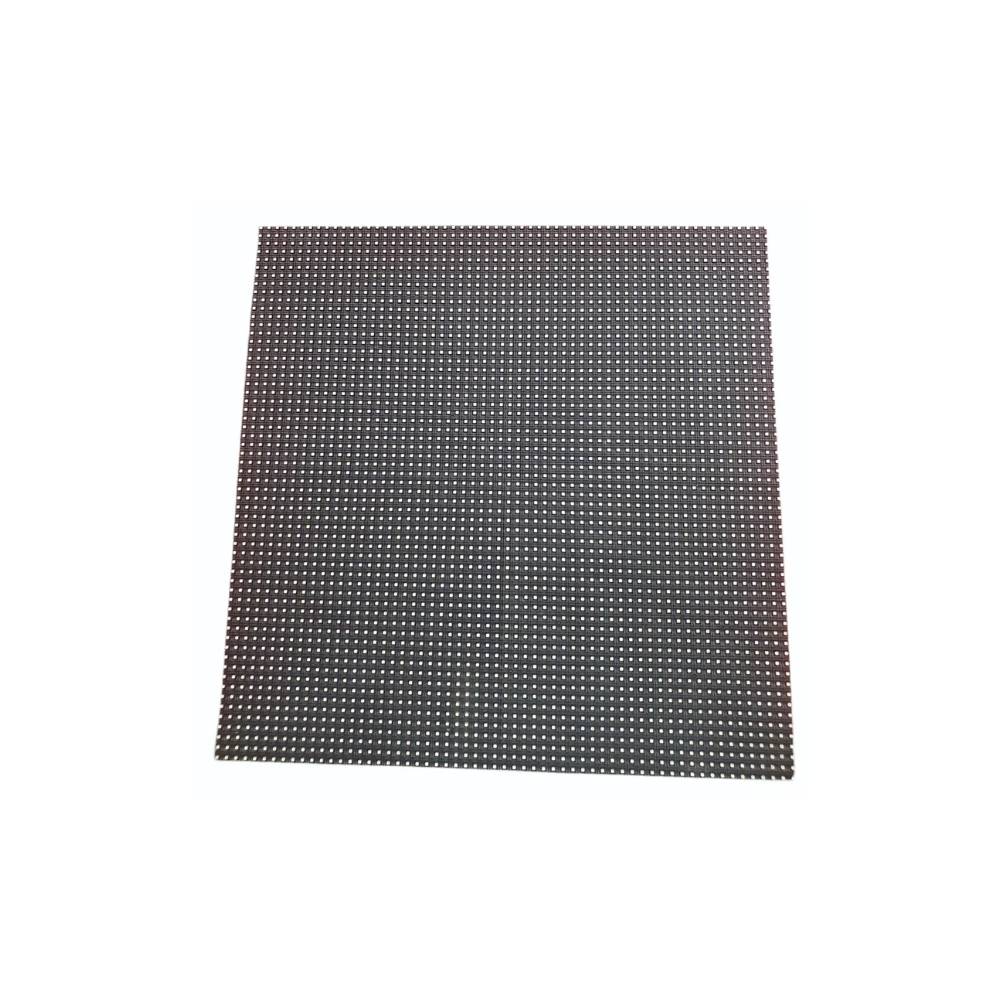

P6 Outdoor Led Module

Name: P6 Outdoor Led Module
Brand: J D DISPLAY TECHNOLOGIES PRIVATE LIMITED
Price: 950 INR
Availability: InStock

Price 950 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces Pieces

P6 Outdoor Led Module Specification

Light Color
RGB

Response Time
1ms

Current Rating
Max 2A per module

Shape
Square

Operating Temperature
-20C to +60C

Life Span
100,000 hours

Wireless Distance
Up to 200m (with external controller)

Beam
140 horizontal / 140 vertical

Control Type
Synchronous/Asynchronous

Power Supply
DC 5V/40A (Recommended for 8 modules)

Humidity %
10% - 95% RH, non-condensing

Efficiency (%)
85%

Housing
Black ABS Plastic

Product Type
Outdoor LED Display Module

Material
ABS + PCB

Base
SMD3535

Power Factor
0.9

Input Voltage
DC 5V

Working Temperature
-20C to +60C

Lamp Power
8-10W per module

Application
Outdoor Advertising, Stadium Screens, Public Display, Digital Signage

Size
192 mm 192 mm

Dimension (L*W*H)
192 mm 192 mm 18 mm

Weight
Approx. 350g

Color
Full Color

LED Type
SMD3535 RGB LED

Color Temperature
6500K

IP Rating
IP65

Storage Temperature Range
-40C to +85C

Gray Scale
14 bits

Control System
Novastar, Linsn, Colorlight compatible

Drive Method
1/8 Scan

Module Density
27,777 dots/m2

Working Voltage Range
4.8V - 5.2V

Maintenance
Front/Rear Maintenance Available

Connector
HUB75

Protection
UV-proof, anti-static surface

Cabinet Compatibility
Supports die-cast/aluminum iron cabinets

Brightness
5500 cd/m2

Module Resolution
32 x 32 dots

Refresh Rate
1920 Hz

Viewing Distance
6 m

Pixel Pitch
6 mm

About P6 Outdoor Led Module

We are offering high-quality P6 Indoor LED Display Module, ideal for indoor advertising and large display applications. With a pixel pitch of 6mm, it delivers bright visuals and reliable performance, suitable for longer viewing distances. Built with advanced SMD LED technology, this module ensures good color consistency, wide viewing angles, and smooth video output. It is energy-efficient, easy to install, and designed for long-lasting use. Widely used in shopping malls, auditoriums, retail stores, and event displays, the P6 module is a cost-effective solution for indoor LED video walls.

Vibrant Performance in Outdoor Settings

Designed for high-impact outdoor communication, the P6 Outdoor LED Module delivers sharp, dynamic visuals at a 6 mm pixel pitch. With a 5500 cd/m2 brightness and wide 140 viewing angles, your content remains clear from nearly any perspective, regardless of sunlight exposure. The IP65-rated enclosure ensures durability, making it suitable for various demanding environments.

Flexible Installation and Maintenance

This module is engineered for both front and rear maintenance, easing both the initial setup and any future service tasks. It is compatible with die-cast and aluminum iron cabinets, offering flexibility to suit a range of applications, whether for large stadiums or compact digital signage installations.

Reliable Performance and Compatibility

Equipped with SMD3535 LEDs, the module ensures a 100,000-hour lifespan and fast 1ms response time. It supports synchronous and asynchronous control, and is compatible with control systems like Novastar, Linsn, and Colorlight. Reliable in conditions from -20C to +60C, it can be installed and operated in diverse environments across India.

FAQ's of P6 Outdoor Led Module:

Q: How is the P6 Outdoor LED Module typically installed and maintained?

A: The P6 module supports both front and rear maintenance, allowing for easy access regardless of your installation setup. It is designed to fit die-cast or aluminum iron cabinets, making it versatile for different outdoor display structures.

Q: What are the main benefits of using this module for outdoor advertising or stadium screens?

A: With a 6 mm pixel pitch and a brightness of 5500 cd/m2, the module offers sharp, sunlight-visible images. Its full-color SMD3535 RGB LEDs and wide 140 viewing angles ensure vibrant visuals, ideal for grabbing attention in outdoor advertising and stadium environments.

Q: When and where should I use the P6 Outdoor LED Module?

A: This module is best suited for outdoor applications like public displays, digital signage, advertising billboards, and stadium screens. Its IP65 rating and robust build mean it can withstand varying weather conditions in installations across India.

Q: What control systems are compatible with this LED module?

A: The P6 Outdoor LED Module works seamlessly with popular control systems such as Novastar, Linsn, and Colorlight, enabling diverse content management options. It also supports synchronous and asynchronous control methods, offering flexibility in operation.

Q: What is the recommended power supply and usage process for this module?

A: Each module runs on DC 5V, with a maximum current of 2A per module. A DC 5V/40A power supply is recommended for powering up to 8 modules simultaneously, ensuring optimal performance and longevity.

Q: How does the module ensure durability and reliable performance outdoors?

A: With an IP65 waterproof rating, UV-proof and anti-static surface, and an ABS+PCB housing, the module is designed to endure exposure to sun, rain, and dust, maintaining peak performance from -20C to +60C.
