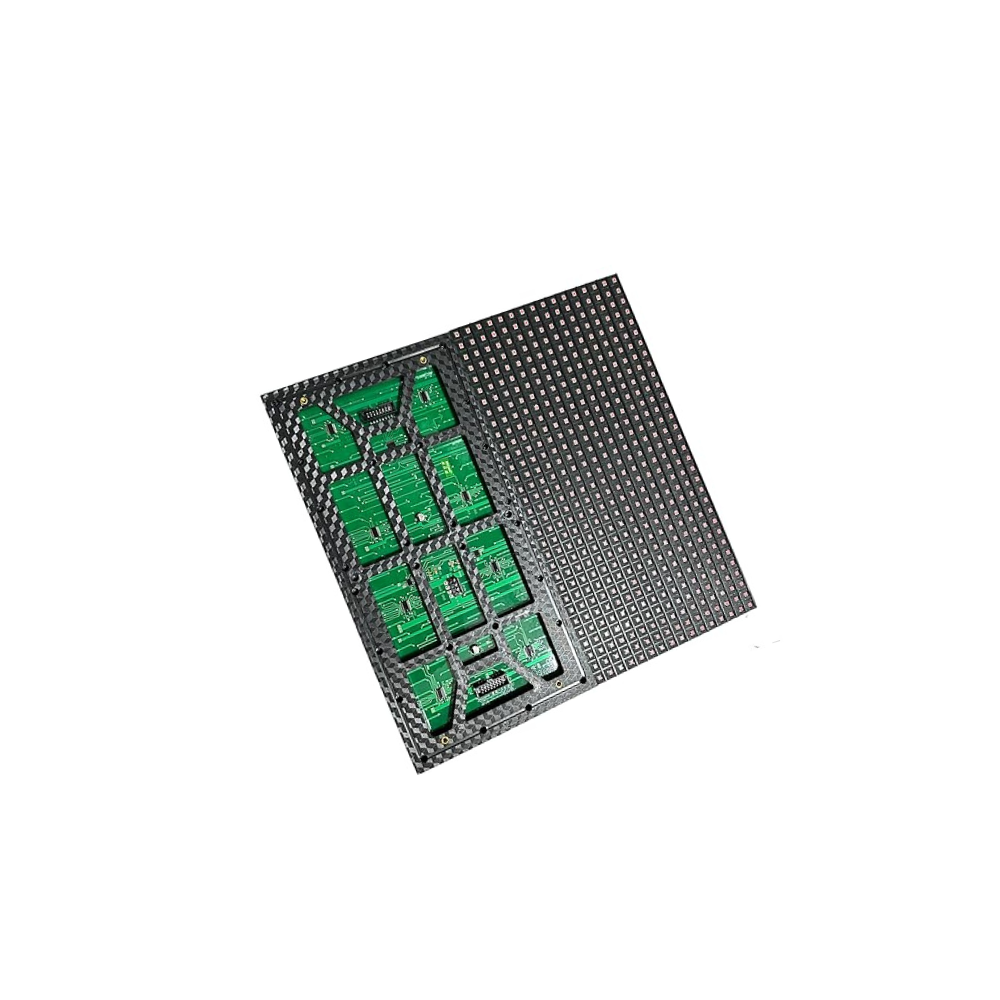

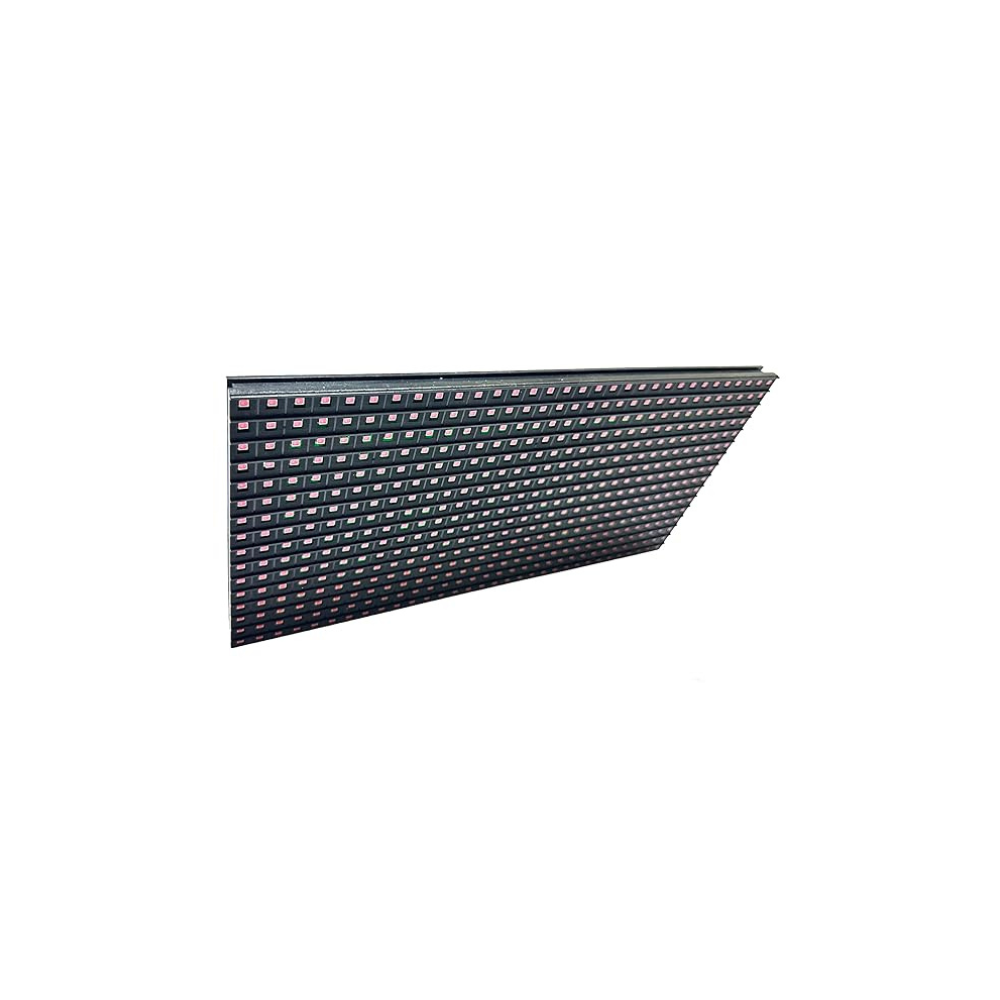

P10 SMD Outdoor Led Module

Name: P10 SMD Outdoor Led Module
Brand: J D DISPLAY TECHNOLOGIES PRIVATE LIMITED
Price: 350 INR
Availability: InStock

Price 350 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces Pieces

P10 SMD Outdoor Led Module Specification

Light Color
RGB

Wireless Distance
Up to 200m (with wireless card)

Shape
Rectangle

Operating Temperature
-20C to 60C

Housing
Black Molded Plastic

Humidity %
10% - 95% RH

Beam
120

Power Supply
5V/40A

Response Time
<0.1ms

Life Span
>100,000 hours

Current Rating
5A

Efficiency (%)
>75%

Control Type
Synchronous/Asynchronous

Product Type
Outdoor SMD LED Module

Material
ABS + PC

Base
SMD3535

Power Factor
0.9

Input Voltage
DC 5V

Working Temperature
-20C to 60C

Lamp Power
10W

Application
Outdoor Advertising Display

Size
P10

Dimension (L*W*H)
320mm x 160mm x 17mm

Weight
380g

Color
Full Color (RGB)

LED Type
SMD3535

Color Temperature
6500K

IP Rating
IP65

Pixel Pitch
10mm

Refresh Rate
>1920Hz

System Support
Windows XP/7/8/10

Interface
Data, Power

Connector Type
HUB12

Viewing Distance
10m - 200m

Brightness
>5500 cd/m2

Maintenance
Front/Rear Serviceable

Gray Scale
16 bit

Cabinet Material Compatibility
Iron / Aluminum Cabinets

Video Input
DVI, HDMI, VGA, AV, SDI

Module Resolution
32 x 16 pixels

Driving Method
1/4 Scan

About P10 SMD Outdoor Led Module

We are offering high-quality P10 LED Display Module, widely used for advertising and large display applications. With a pixel pitch of 10mm, this module is ideal for long viewing distances and delivers bright, clear, and impactful visuals. It is available in both indoor (SMD) and outdoor (DIP) variants to suit different installation requirements.

Superb Visibility in Any Environment

The P10 SMD Outdoor LED Module's high brightness and wide viewing angle ensure that advertisements and information remain clear and impactful, even under direct sunlight or inclement weather. Its advanced full-color capabilities make it perfect for dynamic outdoor promotions, public messages, and large-format displays that demand superior attention.

Flexible Installation and Maintenance

With options for both front and rear servicing, as well as compatibility with iron and aluminum cabinets, this module streamlines installation and routine maintenance. The versatile housing and easy connectivity via HUB12 make it suitable for quick swaps or repairs, reducing downtime and enhancing operational efficiency for businesses and advertisers.

FAQ's of P10 SMD Outdoor Led Module:

Q: How is the P10 SMD Outdoor LED Module maintained?

A: The module is designed for front and rear servicing, meaning access and maintenance can be conducted conveniently from either side. This feature enables quick repairs and replacements, minimizing display downtime during maintenance procedures.

Q: What are the main applications of this LED module?

A: Primarily intended for outdoor advertising displays, the P10 SMD module excels in billboards, digital signboards, stadium screens, and public messaging systems thanks to its robust weather resistance, vivid color output, and extensive viewing distance.

Q: When can the LED module be operated safely?

A: It operates reliably within temperatures from -20C to 60C and in humidity levels ranging from 10% to 95% RH, making it suitable for continuous outdoor use throughout the year in a wide range of environmental conditions.

Q: Where can the module be installed?

A: The module can be mounted in a variety of outdoor locations, including building facades, highways, stadiums, and commercial complexes. Its IP65 rating ensures protection against dust and water, making it ideal for harsh environments.

Q: What benefits does the P10 SMD module offer over traditional display methods?

A: The LED module provides vibrant full-color images, high brightness, wide viewing angles, and an extended lifespan exceeding 100,000 hours. Its energy-efficient performance and durability result in lower maintenance and replacement costs compared to traditional signage.

Q: How is the module controlled and what inputs are supported?

A: Control is supported via synchronous or asynchronous methods, and the system is compatible with Windows XP/7/8/10. Video inputs such as DVI, HDMI, VGA, AV, and SDI are supported for versatile content display.

Q: What is the process for connecting and powering the module?

A: The P10 LED module uses a HUB12 connector for data and power. It requires a DC 5V power supply (typically 5V/40A) and supports fast response times, ensuring smooth image transitions and display updates.
