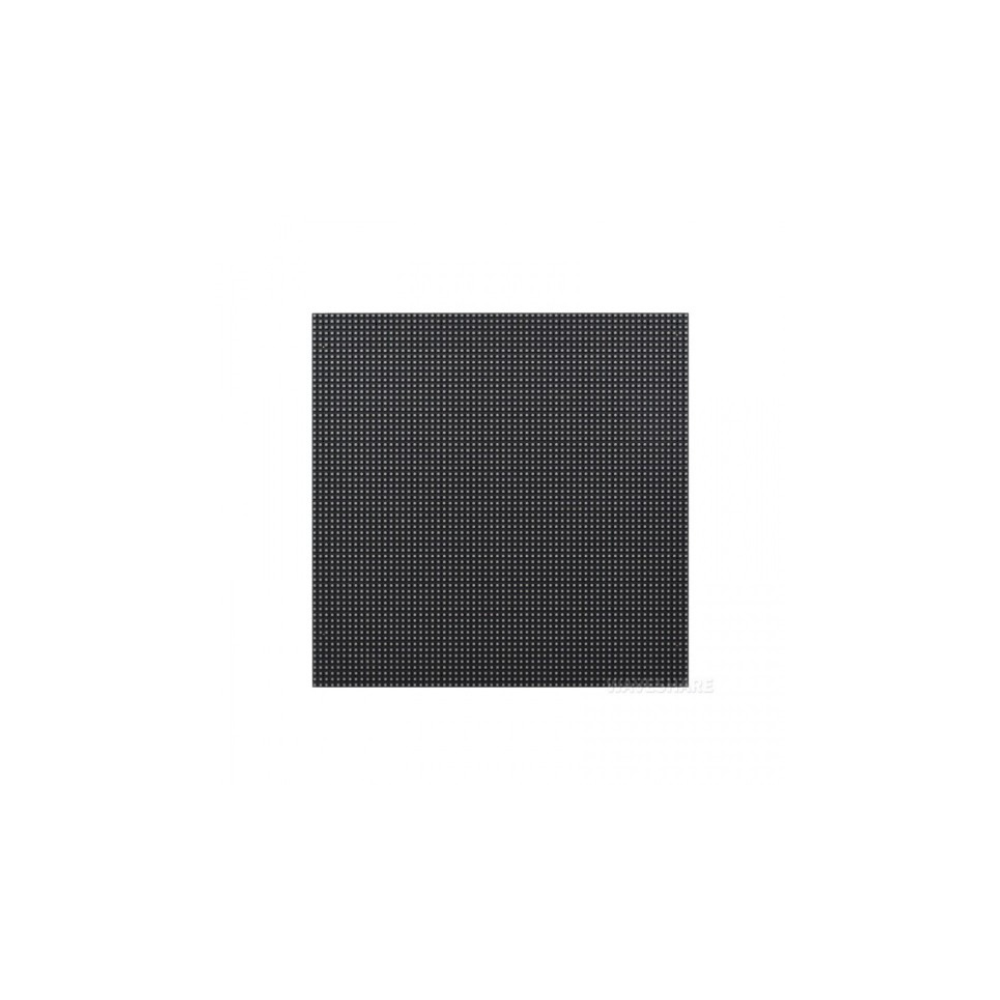

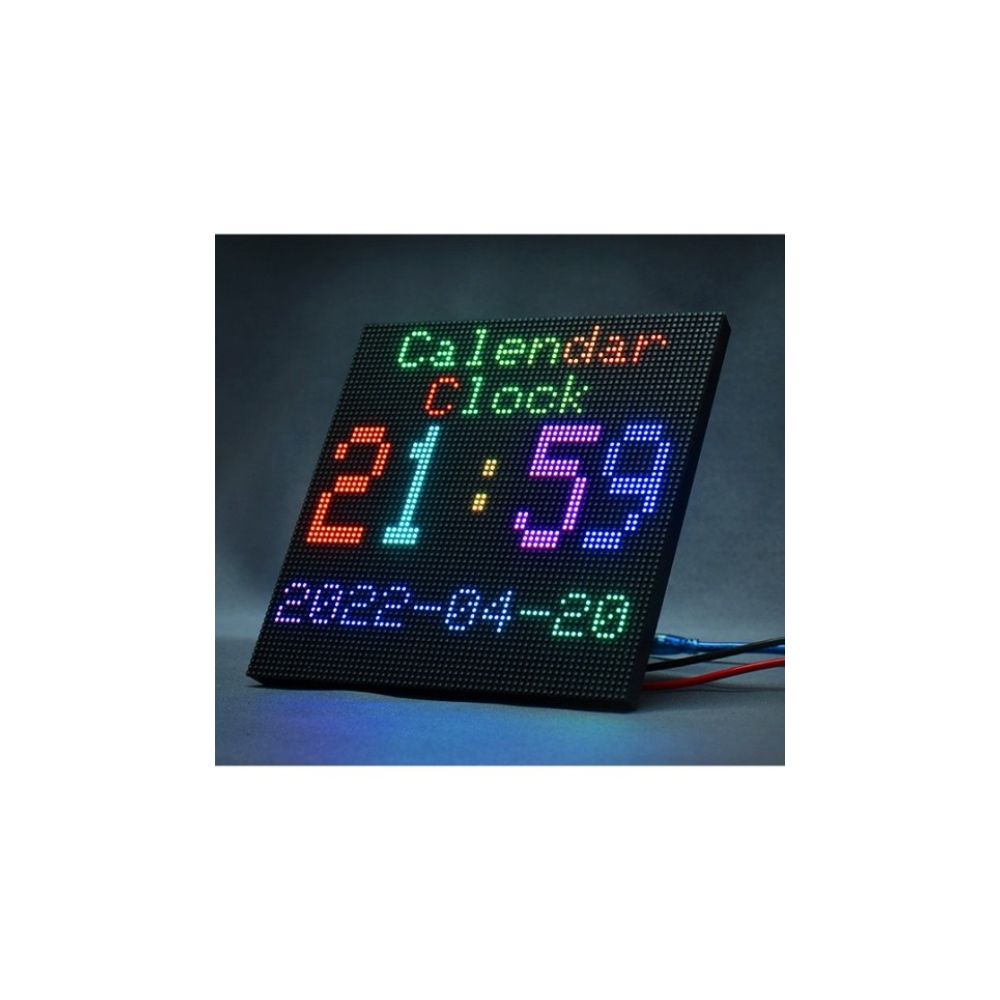

P3 Indoor Led Module

Name: P3 Indoor Led Module
Brand: J D DISPLAY TECHNOLOGIES PRIVATE LIMITED
Price: 1800 INR
Availability: InStock

Price 1800 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces Pieces

P3 Indoor Led Module Specification

Shape
Square

Beam
140 (H) / 140 (V)

Power Supply
DC 5V/40A

Humidity %
10% - 90% RH

Housing
Black ABS

Control Type
Synchronous / Asynchronous

Light Color
RGB

Current Rating
2A max/module

Efficiency (%)
>=85%

Wireless Distance
Up to 100 m (with controller)

Response Time
1ms

Life Span
100,000 hours

Operating Temperature
-20C to +60C

Product Type
Indoor LED Module

Material
ABS Plastic, PCB

Base
PCB Mounted

Power Factor
0.9

Input Voltage
5V DC

Working Temperature
-20C to +60C

Lamp Power
10W

Application
Indoor Display / Advertising

Size
192mm x 192mm

Dimension (L*W*H)
192mm x 192mm x 20mm

Weight
0.25 KG

Color
Full Color

LED Type
SMD2121

Color Temperature
3200K-9500K

IP Rating
IP20

Connector Type
HUB75

Module Resolution
64 x 64 dots

Gray Scale
14 bit

Pixel Density
111,111 dots/m2

Maintenance
Front and Rear Service

Storage Temperature
-40C to +80C

Pixel Pitch
3.0mm

Brightness
1000 cd/m2

Drive Mode
1/32 Scan

Signal Transmission
Flat Ribbon Cable

Refresh Rate
1920Hz

Viewing Distance
>=3m

About P3 Indoor Led Module

We are offering high-performance P3 Indoor LED Display Module, suitable for indoor advertising and video wall applications. With a pixel pitch of 3mm, this LED module delivers clear visuals, good brightness, and smooth video output, making it ideal for medium viewing distances.

High-Definition Indoor Visual Solution

With its 3.0mm pixel pitch and 64x64 dot resolution, the P3 Indoor LED Module delivers sharp, high-quality images suitable for close-range viewing in indoor settings. Its full color capability, wide viewing angle, and high refresh rate make it perfect for advertising displays, events, and public information screens.

Convenient Installation and Maintenance

The module is designed for both front and rear service, simplifying setup and ongoing maintenance. Its compact 192mm x 192mm size and light 0.25 kg weight facilitate flexible mounting, while the HUB75 connector and flat ribbon cable enable quick, secure signal transmission.

Durability and Performance in All Environments

Crafted from robust ABS plastic with a PCB base, the module withstands harsh conditions, operating efficiently between -20C to +60C and enduring storage from -40C to +80C. Its IP20 rating assures protection for indoor use and long-lasting performance even in challenging environments.

FAQ's of P3 Indoor Led Module:

Q: How do I install the P3 Indoor LED Module for my display project?

A: Installation is simple using the square 192mm x 192mm design. The module mounts securely on a PCB base, connects via a HUB75 socket and flat ribbon cable, and supports both front and rear maintenance for hassle-free setup and servicing.

Q: What benefits does the 3.0mm pixel pitch offer for indoor displays?

A: The fine 3.0mm pixel pitch ensures high image clarity and detail, allowing viewers to stand as close as 3 meters without seeing pixelation. This makes the module ideal for vivid, eye-catching indoor advertising and event screens.

Q: When should I perform maintenance, and how is it accessed?

A: Routine maintenance can be performed periodically to ensure optimal performance. The module is designed for both front and rear service, allowing quick access to internal components without dismantling the entire installation.

Q: Where can the P3 Indoor LED Module be used effectively?

A: This module is perfect for indoor environments such as retail shops, conference rooms, event venues, and advertising billboards, particularly where high image quality and reliable performance are essential.

Q: What is the expected lifespan and reliability of this LED module?

A: Built for durability, the module offers a lifespan of up to 100,000 hours and operates efficiently in a wide temperature range, ensuring long-term, consistent performance for a broad range of indoor applications.

Q: How does the module handle wireless control and signal transmission?

A: It supports synchronous and asynchronous controls, with wireless signal transmission capabilities up to 100 meters (when paired with an appropriate controller), using flat ribbon cable for robust signal integrity.
