P2.5 Led Module

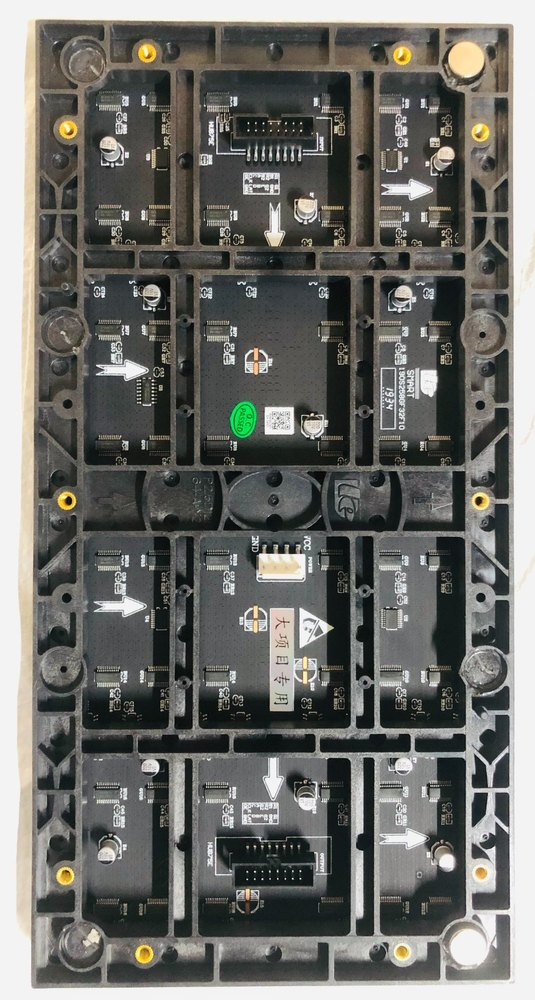

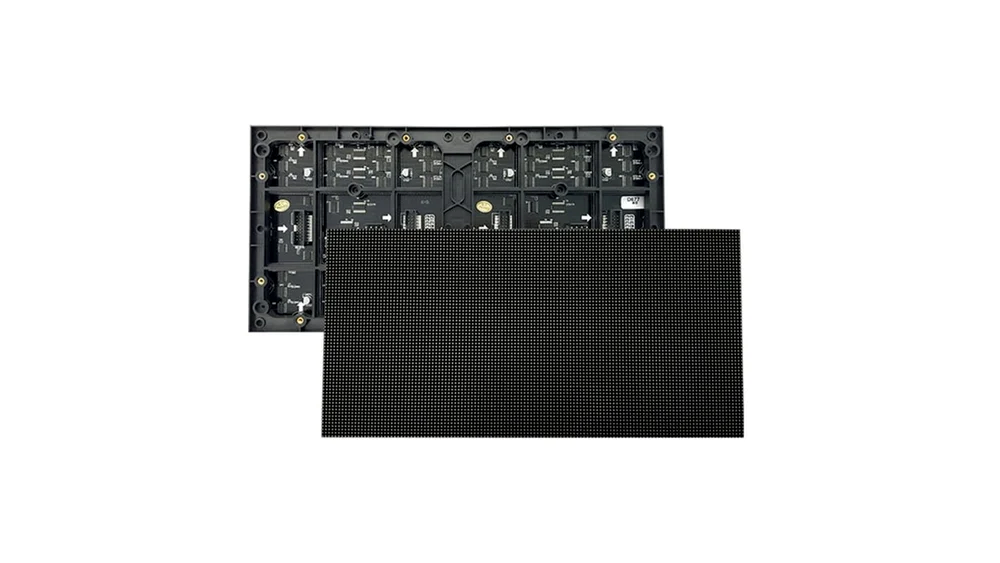

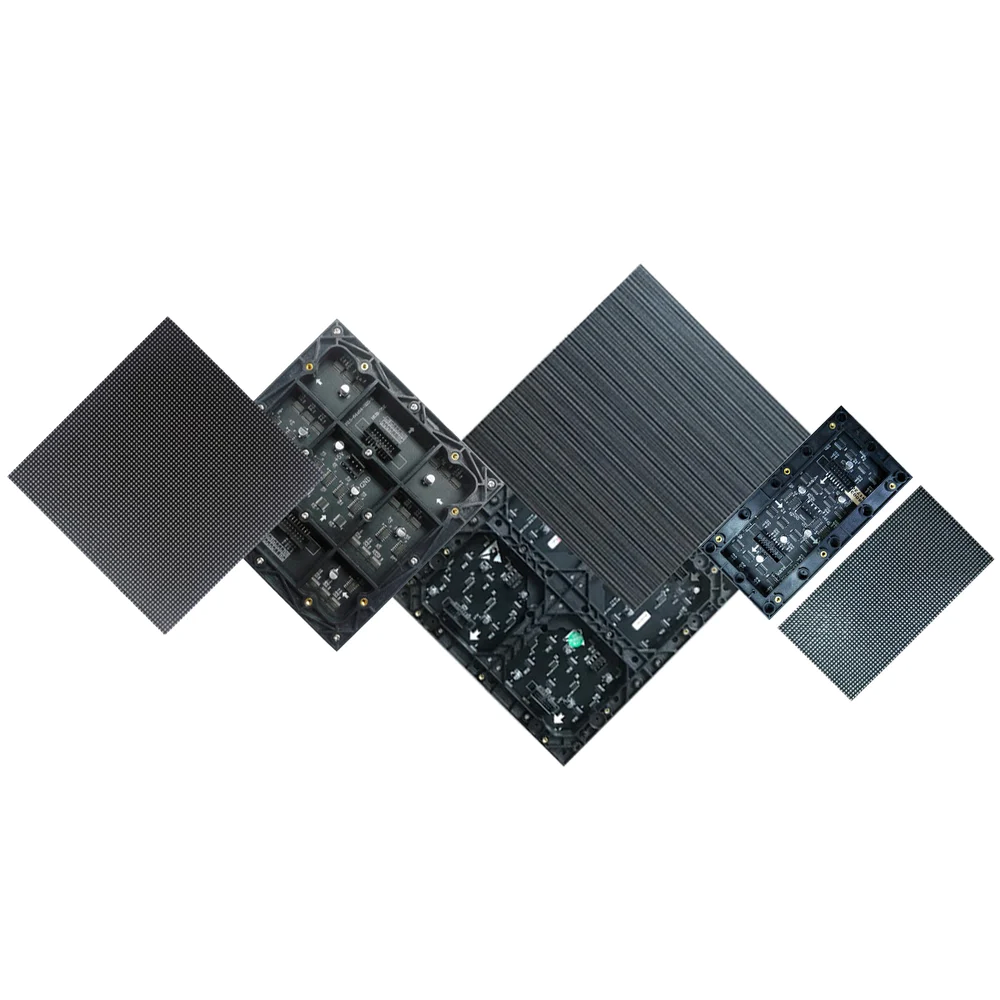

Name: P2.5 Led Module
Brand: J D DISPLAY TECHNOLOGIES PRIVATE LIMITED
Price: 1200 INR
Availability: InStock

Price 1200 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces Pieces

P2.5 Led Module Specification

Beam
120 (H), 120 (V)

Efficiency (%)
>85%

Shape
Square

Control Type
Synchronous/Asynchronous

Life Span
100,000 hours

Housing
Black ABS

Response Time
2ms

Current Rating
4.8A/module

Operating Temperature
-10C to 50C

Light Color
RGB

Humidity %
10% - 90% RH

Wireless Distance
100m (optional)

Power Supply
DC 5V, 40A (per module set)

Product Type
LED Display Module

Material
ABS + PCB

Base
SMD

Power Factor
>0.9

Input Voltage
DC 5V

Working Temperature
-20C to 60C

Lamp Power
10W

Application
Indoor Advertising, Conference Room, Retail, Stage Display

Size
2.5mm pixel pitch

Dimension (L*W*H)
160mm x 160mm x 15mm

Weight
180g/module

Color
Full Color

LED Type
SMD2121

Color Temperature
6500K - 9500K

IP Rating
IP43

Connector Type
HUB75

Refresh Rate
1920Hz

Gray Scale
16 bit

Viewing Distance
>2.5m

Driving IC
MBI5124 or equivalent

Module Surface
Matte finish, anti-glare

Storage Temperature
-30C to 60C

Serviceability
Front/Rear Maintenance

Module Resolution
64 x 64 pixels

Mounting Type
Magnetic or Screw

Cabinet Compatibility
Supports Die-cast, Iron, Aluminum cabinets

Maximum Power Consumption
20W/module

Scan Mode
1/32 scan

Operating Voltage Range
4.8V - 5.2V DC

Brightness
1200 cd/m2

About P2.5 Led Module

We are offering high-performance P2.5 Indoor LED Display Module, suitable for indoor advertising and display applications. With a pixel pitch of 2.5mm, this module delivers clear visuals, good brightness, and smooth video output, making it ideal for medium viewing distances.

Exceptional Visual Quality for Indoor Applications

With its 2.5mm pixel pitch, the P2.5 LED Module produces sharp, colorful images, suitable for indoor environments where clarity and brightness truly matter. Its anti-glare matte finish ensures clear visibility even under ambient lighting, while the wide viewing angles of 120 both horizontally and vertically make it ideal for versatile setups.

Versatile Mounting and Maintenance Options

Designed for seamless integration, the module supports both magnetic and screw mounting, and allows for front or rear maintenance. This flexibility speeds up installation and makes servicing straightforward, whether used in die-cast, iron, or aluminum cabinets.

Reliable and Efficient Performance

Operating on DC 5V and built using robust ABS housing and SMD2121 LEDs, the module guarantees energy efficiency (>85%) and longevity, with a lifespan of over 100,000 hours. Power consumption is low at 20W per module, while advanced control options include both synchronous and asynchronous systems, with optional wireless operation up to 100 meters.

FAQ's of P2.5 Led Module:

Q: How is the P2.5 LED module installed for different applications?

A: You can install the P2.5 LED module using magnetic or screw mounting options, which makes it compatible with various cabinet types like die-cast, iron, or aluminum. Its compact size and versatile mounting ensure easy integration into indoor advertising boards, stage displays, or conference room setups.

Q: What maintenance process is available for this LED module?

A: The module provides front and rear maintenance options, allowing for quick and convenient servicing. This feature simplifies access to internal components, minimizing downtime and supporting environments that require frequent updates or repairs.

Q: When should I use the P2.5 LED module over other pixel pitches?

A: This module is ideal when the viewing distance is greater than 2.5 meters and high visual detail is required, such as in conference rooms or retail displays. The fine 2.5mm pixel pitch delivers excellent image quality for close-to-medium range viewing scenarios.

Q: Where can I use the P2.5 LED module?

A: The module is designed for a variety of indoor environments including conference rooms, retail outlets, stage backgrounds, and advertising installations. Its full-color display and matte finish make it suitable for well-lit indoor spaces where visibility and clarity are essential.

Q: What benefits does the matte, anti-glare surface provide?

A: The matte, anti-glare surface reduces unwanted reflections and enhances visibility under various lighting conditions. This ensures consistent, high-quality visuals for audiences, making it highly effective for indoor commercial and professional applications.

Q: How is the P2.5 LED module powered and controlled?

A: The module operates on DC 5V, with each set powered by a 40A supply. Data connections use the HUB75 interface, and it supports both synchronous and asynchronous control systems, with optional wireless connectivity extending up to 100 meters.

Q: What makes this LED module durable and efficient?

A: Constructed from ABS and high-quality PCB materials, and equipped with SMD2121 LEDs, the module is rated for a lifespan of 100,000 hours and efficient operation. Its robust design, along with IP43 protection, assures consistent performance in varied indoor environments.
