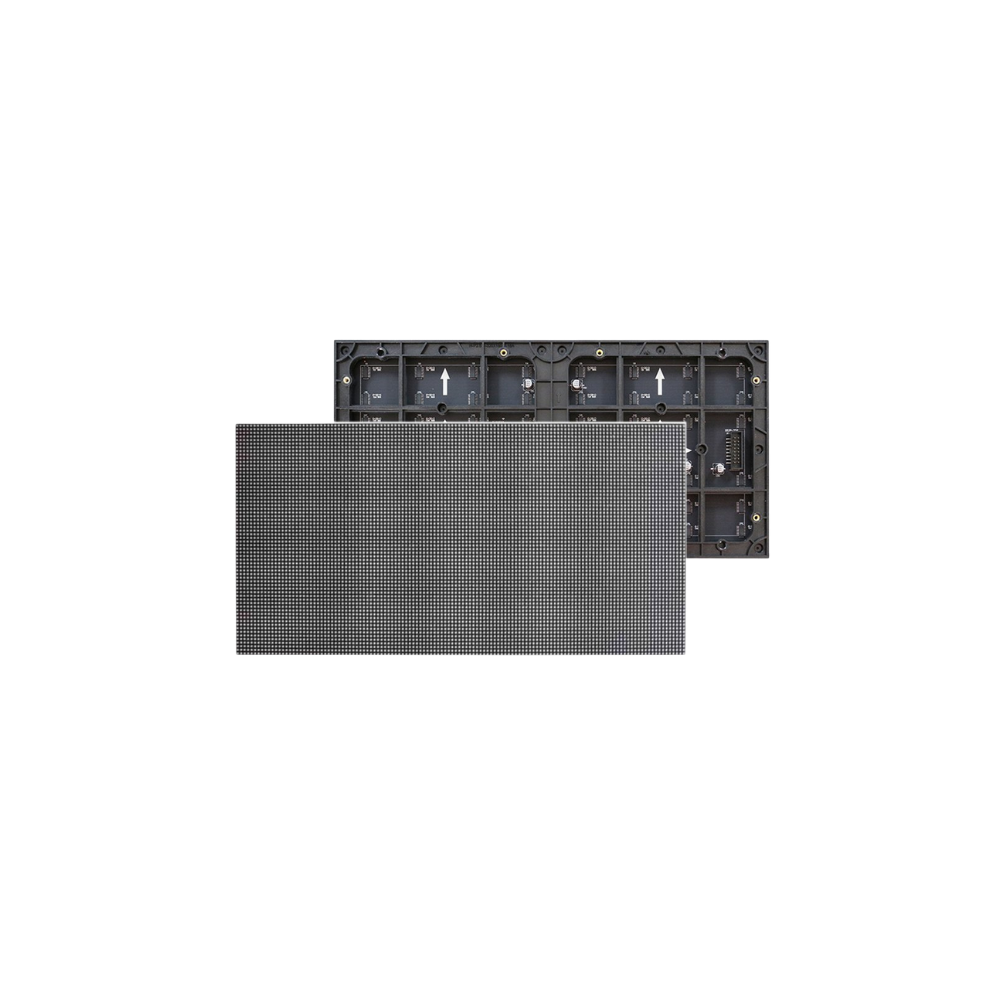

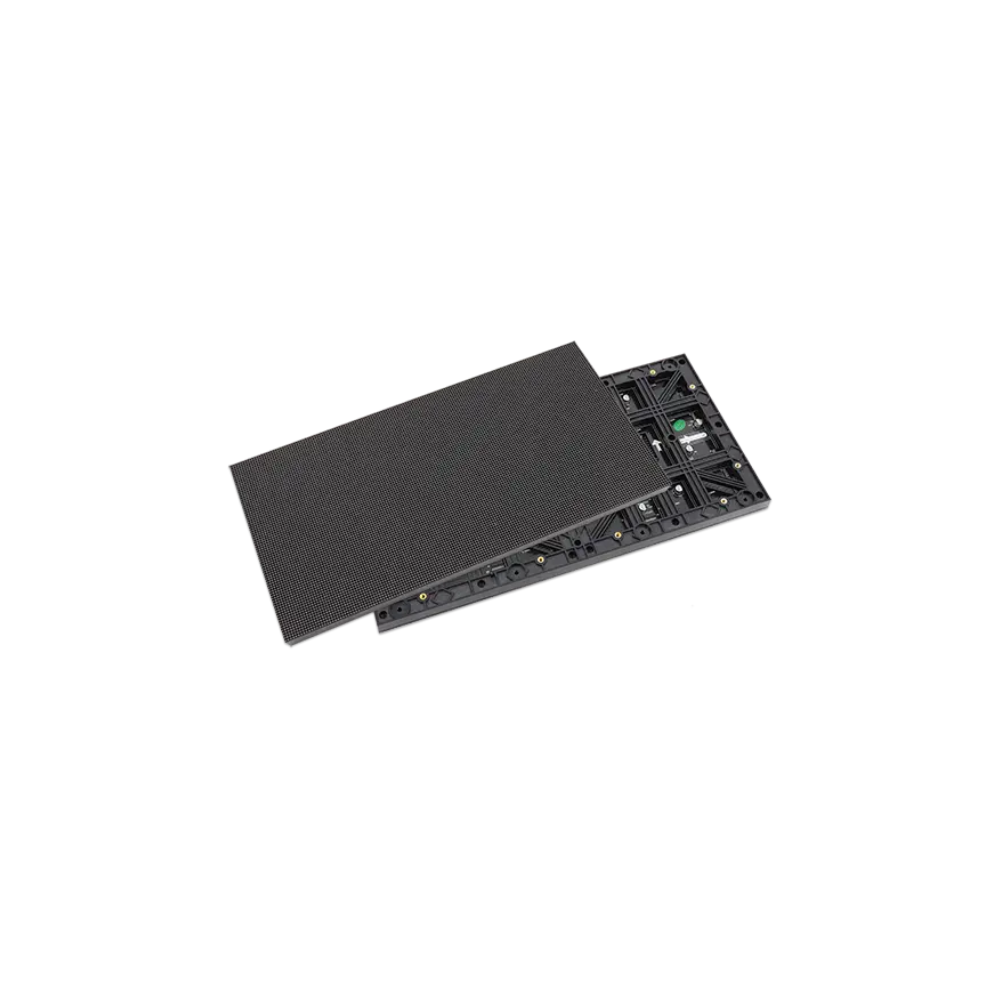

P2 Led Module

Name: P2 Led Module
Brand: J D DISPLAY TECHNOLOGIES PRIVATE LIMITED
Price: 1800 INR
Availability: InStock

Price 1800 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces Pieces

P2 Led Module Specification

Efficiency (%)
85%

Beam
140 H / 140 V

Housing
Black Mask Design

Control Type
Synchronous/Asynchronous

Humidity %
10%-90% RH

Response Time
<10ms

Shape
Rectangular

Life Span
>100,000 hours

Power Supply
AC 110-220V (with adapter)

Operating Temperature
-20C to +50C

Wireless Distance
Up to 100m (with wireless controller)

Current Rating
4.5A

Light Color
RGB

Product Type
P2 LED Module

Material
Aluminum & PCB

Base
SMD Mount

Power Factor
0.9

Input Voltage
DC 5V

Working Temperature
-20C to +50C

Lamp Power
15W/module

Application
Indoor display, advertising, stage events

Size
256mm x 128mm

Dimension (L*W*H)
256mm x 128mm

Weight
0.35kg

Color
Full Color RGB

LED Type
SMD1515

Color Temperature
6500K

IP Rating
IP43

Viewing Distance
2~100m

Maintenance
Front/Rear Service Available

Gray Scale
14-16 bits

Pixel Pitch
2mm

Refresh Rate
1920Hz

Brightness
1000 cd/m2

Module Resolution
128 x 64 pixels

Storage Temperature
-30C to +60C

Input Signal
DVI, HDMI, VGA, AV, USB

Drive Mode
1/32 Scan

Connector Type
Hub75

Frame Frequency
60Hz

Cabinet Material
Die-casting Aluminum (for cabinet use)

Pixel Density
250,000 dots/m2

About P2 Led Module

We are offering superior quality P2 Indoor LED Display Module, designed for high-definition indoor display applications. With a pixel pitch of 2mm, this LED module delivers clear visuals, vibrant colors, and smooth video performance, making it ideal for medium viewing distances.

Exceptional Visual Clarity

Delivering a pixel density of 250,000 dots/m2 and 14-16 bit gray scale, the P2 LED Module produces crisp, vivid images suited for short- and long-range viewing. Its 1920Hz refresh rate and 60Hz frame frequency minimize motion artifacts for a smoother experience.

Flexible and Robust Design

Crafted from die-casting aluminum, the module is both lightweight and sturdy. The black mask design enhances contrast, while front and rear service accessibility streamlines maintenance for busy environments. Its robust IP43 housing allows indoor installation in locations across India.

Effortless Integration and Control

This LED module supports a broad range of input signals including DVI, HDMI, VGA, AV, and USB. With synchronous and asynchronous control options and wireless management up to 100 meters, you can tailor operations to your event or display needs with ease.

FAQ's of P2 Led Module:

Q: How do I install and maintain the P2 LED Module?

A: Installation is straightforward thanks to the module's rectangular 256mm x 128mm size and lightweight die-cast aluminum cabinet. Maintenance is simplified with both front and rear service options, allowing quick access for repairs and upgrades without major disassembly.

Q: What environments and events is this LED module suitable for?

A: The P2 LED Module is specifically engineered for indoor use, rendering it ideal for advertising, stage events, shows, conferences, and various indoor informational displays. Its IP43 rating and robust construction ensure reliable performance in typical indoor environments found throughout India.

Q: When should I choose a 2mm pixel pitch LED module?

A: Choose a 2mm pixel pitch module when you require high resolution and image clarity, particularly for close viewing distances between 2 and 100 meters. This ensures your images and videos remain crisp and detailed, making it perfect for indoor displays and events.

Q: Where can the P2 LED Module be installed for optimum performance?

A: Place the module in well-ventilated indoor spaces, such as auditoriums, retail stores, exhibition halls, and event venues. Mounting it in secure areas protected from direct water exposure allows you to maximize both visual impact and product longevity.

Q: What is the process for connecting and operating this LED module?

A: To operate, connect the module using supported input signals such as DVI, HDMI, VGA, AV, or USB. Power using AC 110-220V through the provided adapter, and control content synchronously or asynchronously. With Hub75 connectors and wireless options, setup is fast and straightforward.

Q: How does the P2 LED Module benefit businesses and event organizers?

A: With exceptional brightness (1000 cd/m2), high efficiency, and a long lifespan exceeding 100,000 hours, this module reduces operational costs while delivering dynamic and vibrant content. Its versatile connectivity and easy serviceability make it a valuable investment for a wide variety of professional applications.
